Description & Specifications

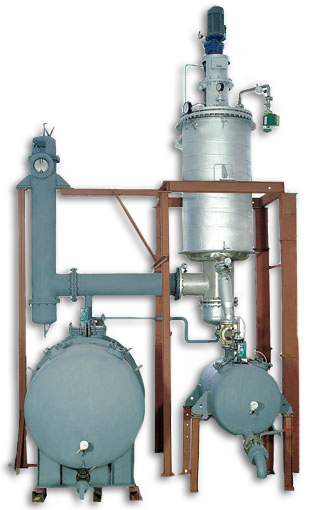

2002 Manufactured 20 m2 WFE
2003 Set up process to recover base oil from used lube oil & sold WFE of size 5 & 10 m²
2004 Made a success of WFE for concentration of oleoresin to low PPM levels of solvents in the Concentrate
2012-2013 exported 10 WFEs for Reclaiming Used Lube Oil
Advantages:
  • Evaporation at low operating temperature
  • Short residence time (few seconds)
  • High heat transfer coefficients
  • Low pressure drop on vapor side
  • No degradation or loss of active ingredients
  • Self cleaningwiping of the heat transfer surface
  • Suitable for viscous liquids
  • Continuous operation
  • Low maintenance
Features:
  • Low rotational speed
  • No bottom bearing
  • Higher power to take care of feed fluctuations
  • Chevron rotor with interchangeable panels for ease of cleaning
  • Double groove gasket for high vacuum WFE
  • Conical bottom with auger
  • Top vapour outlet
  • Large internal condenser
  • Swing / Hinge wiper blades
  • Open rotor (no entrainment separator)
