Description & Specifications
|

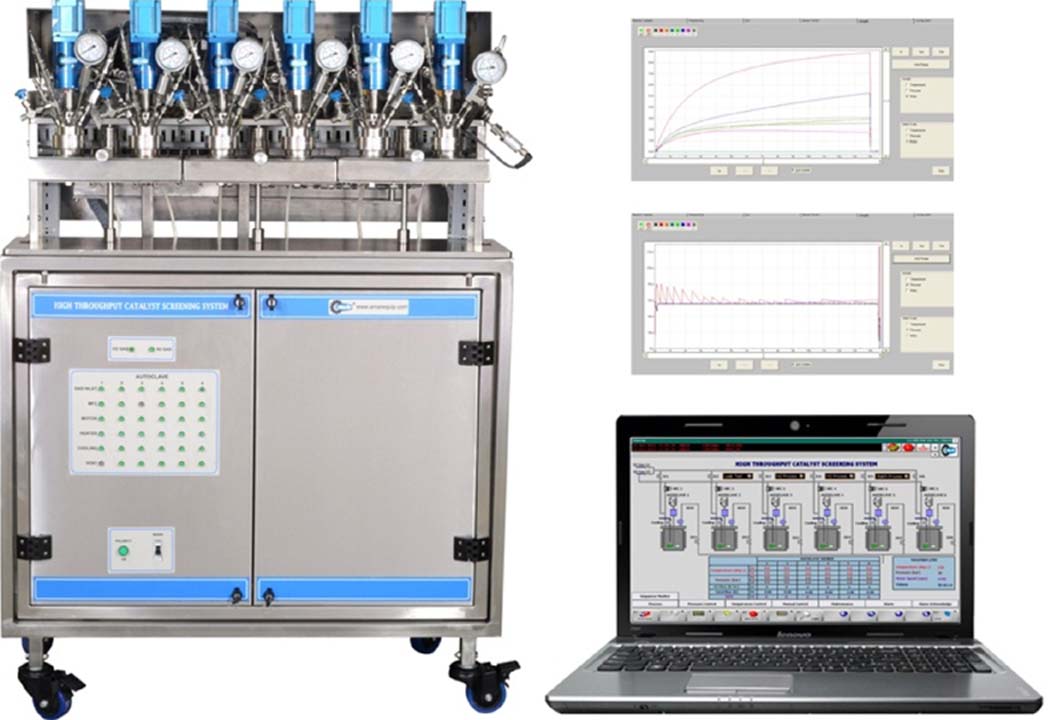

For high through-put catalyst screening / testing / research 50ml to 5lit volume 4 nos. or 6 nos. parallel reactors Common mounting and control panel Pressures upto 350 bar & temperatures upto 500°C Available in different Material of Constructions (MOC) like SS-316, SS-316L, Hastelloy B/C, Monel, Nickel, Inconel, Titanium, High torque zero leakage magnetic drive coupling Ex-proof / CE / PED / ASME certified systems on request Semi or Fully automated PC controlled with SCADA software to continuously monitor, control & record various parameters like temperature, pressure, motor speed, gas / liquid flow, level, pH, turbidity, torque, IR etc Fully automated system with programming for leak test, N2/H2 flushing, temperature profile, speed control, H2 purging, pressure control with H2 gas uptake, cooling, vent etc. Safety alarm & interlock for high & low temperature / pressure & suitable safety rupture discs |
